Breaking the Thickness Barrier: How TOPTEK LASER’s Hybrid CNC System is Revolutionizing Heavy Industry

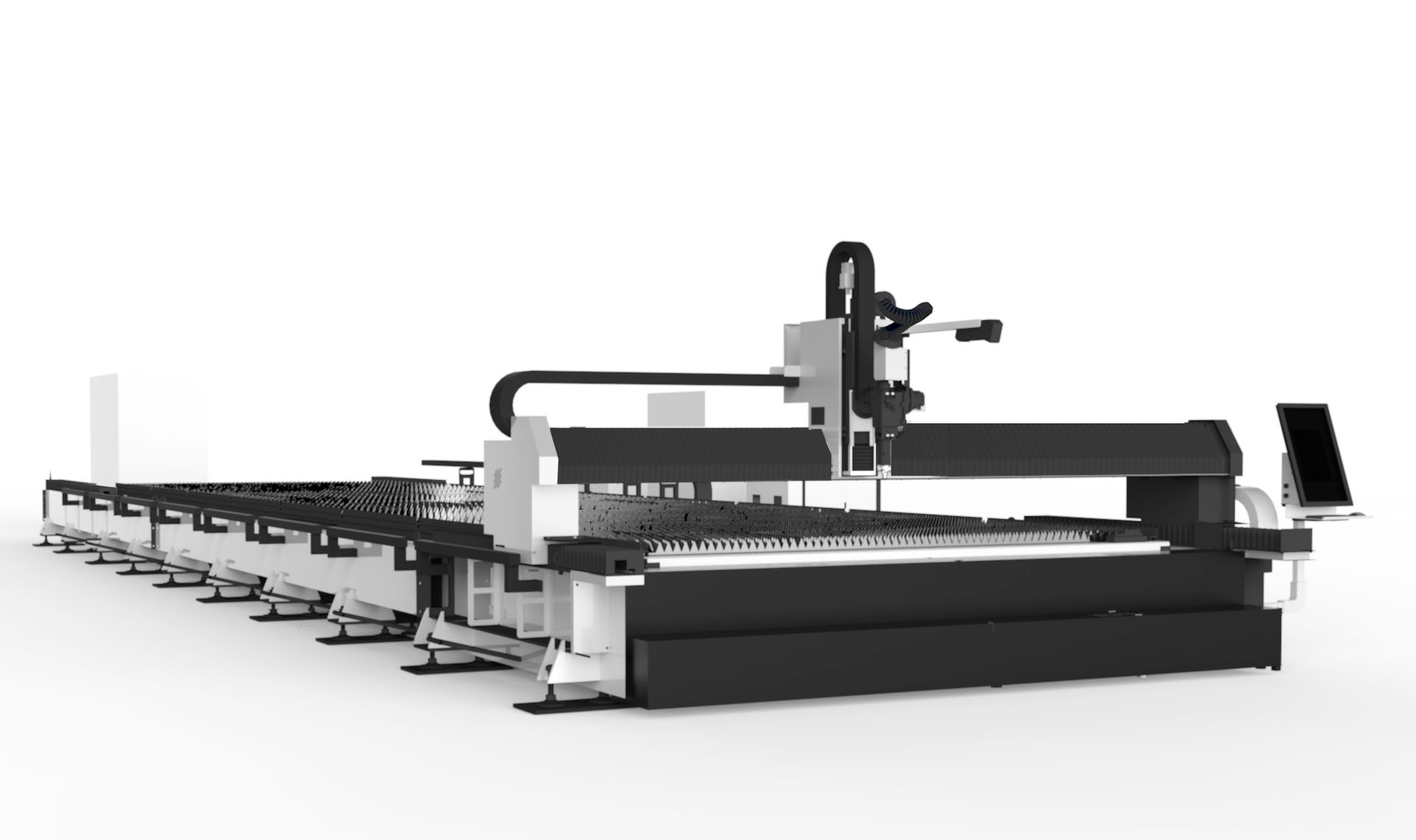

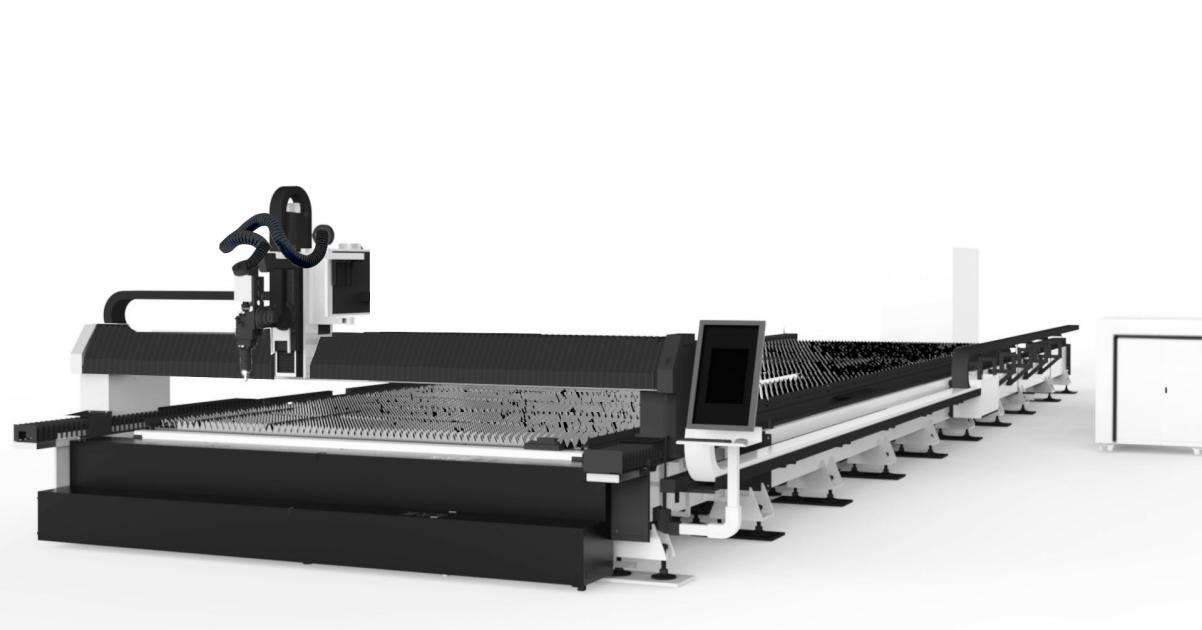

As global industries strive for sustainable productivity, the role of an integrated hybrid CNC system becomes critical. By housing both a high-precision fiber laser head and an oxy-fuel torch on a robust gantry structure, manufacturers can now handle a spectrum of steel thicknesses that previously required multiple separate workstations. This innovation, championed by industry leaders like TOPTEK LASER, addresses the bottleneck of material handling and equipment redundancy, allowing for a seamless transition between the "speed and finesse" of laser and the "raw power" of flame.
The Convergence of Two Powerhouses: Technical Synergy
The core value of a laser and flame composite cutting machine lies in its ability to solve the tension between processing thickness, cutting accuracy, and capital expenditure. Historically, if a facility needed to cut 50mm or 100mm carbon steel plates, they had two choices: use a traditional flame cutting machine, which is cost-effective but lacks precision for thinner parts, or invest in an ultra-high-power laser (30kW to 60kW). The latter, while impressive, involves a massive financial investment that can run into millions of dollars, alongside high maintenance and energy costs.

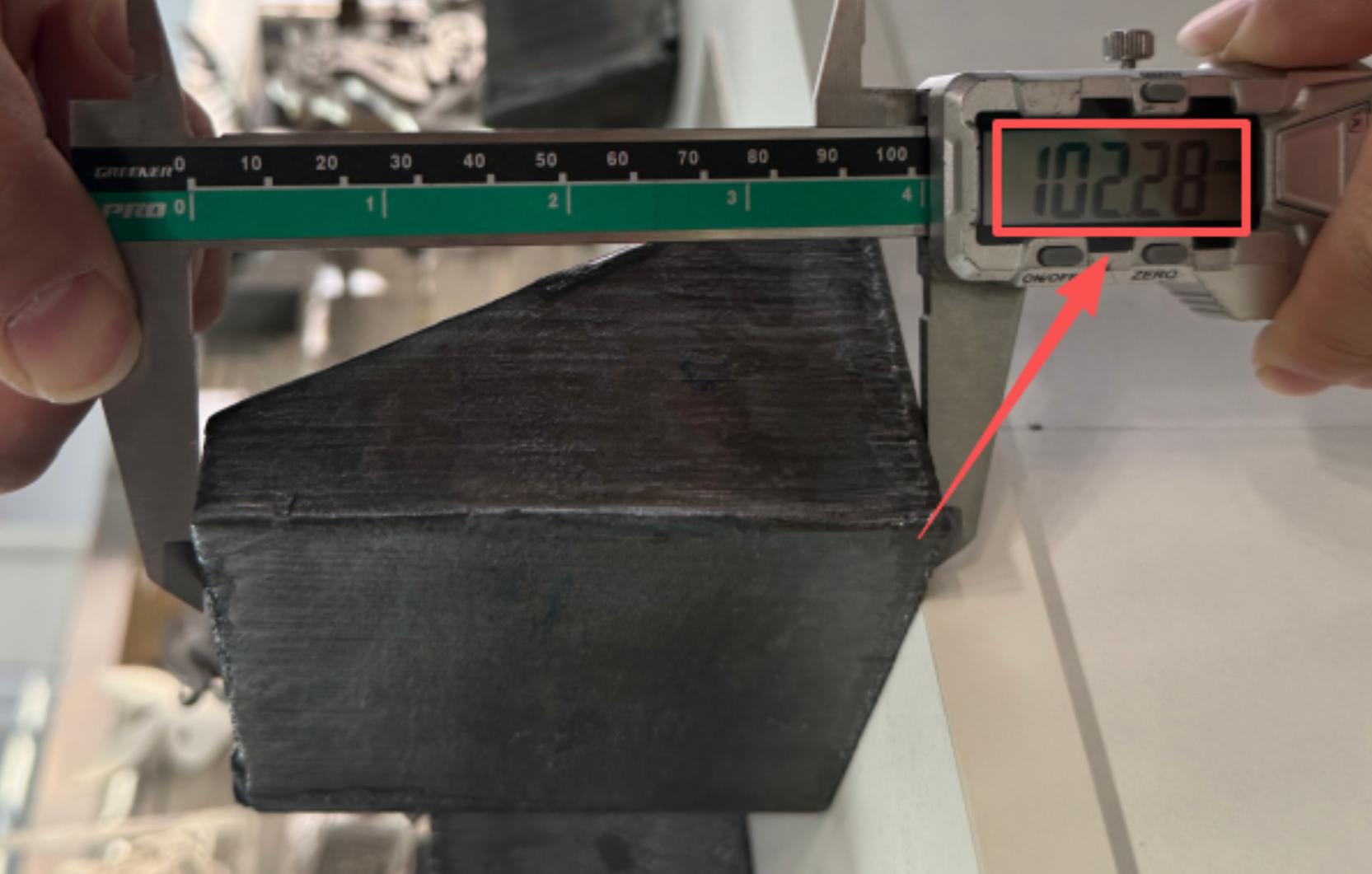

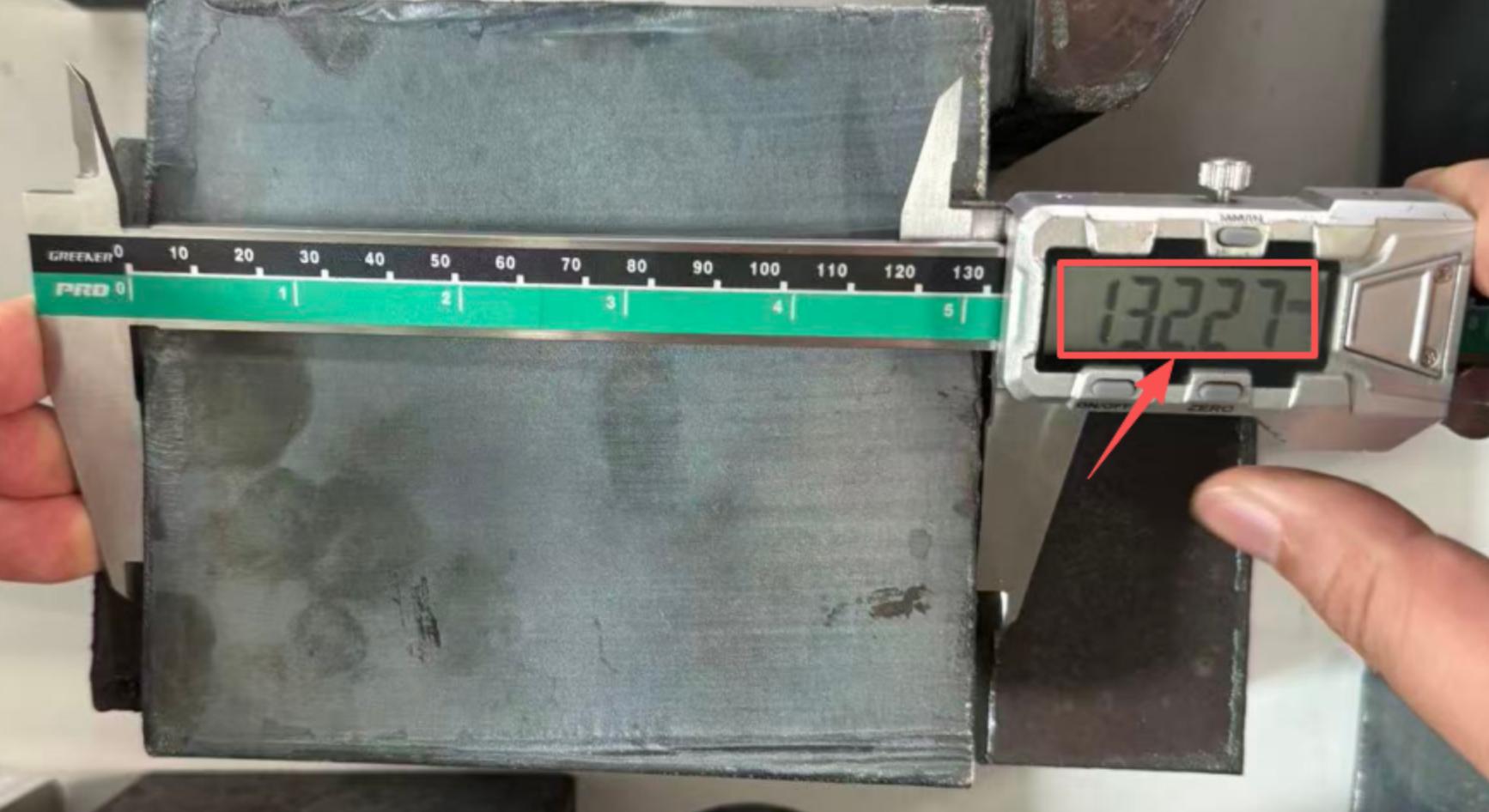

A modern hybrid CNC system offers a more rational alternative. By utilizing a medium-to-high power fiber laser cutting machine (typically ranging from 6kW to 20kW) alongside a specialized flame torch, the system achieves "full-thickness coverage." The laser component takes charge of the "fast and fine" requirements, slicing through 1mm to 20mm plates with extreme speed, minimal heat-affected zones, and mirror-like cross-sections that require no secondary finishing. When the job shifts to ultra-thick carbon steel—30mm, 50mm, or even 200mm—the system intelligently engages the flame cutting module. This ensures that 80% of high-precision work and 20% of ultra-heavy tasks are handled by a single investment, causing equipment procurement costs to drop significantly compared to purchasing extreme-wattage laser setups.
Furthermore, this "three-in-one" capability often includes support for bevel cutting. Integrating V, Y, and K-shaped beveling into the same process eliminates the need for separate edge preparation machines. For heavy industry, this means a CNC cutting machine is no longer just a tool for shapes; it is a comprehensive fabrication center that prepares parts for immediate welding.
Operational Efficiency and Sustainability
From an operational standpoint, the benefits of being a leading laser and flame composite cutting machine supplier extend beyond the cut itself. One of the most immediate advantages is the optimization of factory floor space. By consolidating two distinct cutting zones into one, manufacturers can maximize their production footprint, a crucial factor for urban facilities or expanding plants.
The logistical flow of the workshop also sees a dramatic improvement. For complex orders that involve various plate thicknesses, operators no longer need to move heavy slabs between different machines using overhead cranes. All tasks—from high-precision small holes to heavy-duty structural outlines—are completed on one bed. This reduction in material handling not only saves time but significantly lowers the risk of operational accidents and plate damage.
Energy efficiency is another pillar of this technology. Cutting ultra-thick plates with extremely high-power lasers consumes an enormous amount of electricity and necessitates frequent replacement of expensive consumables like protective lenses and nozzles. In contrast, the flame module within the hybrid system uses relatively inexpensive oxygen and fuel gases (such as propane or acetylene), drastically reducing the cost-per-part for heavy-duty applications. This balanced energy profile makes the laser and flame composite cutting machine a much more sustainable choice for long-term industrial use.
Strategic Applications Across Global Markets
The versatility of the laser and flame composite cutting machine makes it an indispensable asset for sectors dealing with heavy assets and large-scale infrastructure. In the realm of heavy construction and mining machinery, equipment such as excavators, loaders, and crushers require a mix of components. The chassis and load-bearing structures, often exceeding 30mm in thickness, are ruggedly handled by the flame torch, while the precision-engineered operator cabins and control panels are finished by the laser.
Similarly, the shipbuilding and offshore engineering sectors benefit from the massive gantry spans—often 3 to 6 meters wide and over 30 meters long—characteristic of these systems. Shipyards must process vast quantities of steel, ranging from thick hull keels to thinner internal partitions. A single laser cutting machine with hybrid capabilities can manage this entire diversity. The technology is equally vital in the wind energy sector for tower bases and flanges, and in large-scale steel distribution centers where the ability to accept any carbon steel order from 1mm to 200mm is a significant competitive edge.
Reliability and Technical Excellence
Behind these technological advancements is a philosophy of reliability and "altruism" in manufacturing. Top-tier providers like TOPTEK LASER, headquartered in Jinan—China's premier laser manufacturing hub—understand that a machine is only as good as the support behind it. Operating out of a 35,000-square-meter modern facility, the focus remains on delivering industrial-grade solutions that align with European and North American standards.
Reliability is ensured by sourcing over 90% of key components from international premium brands, combined with rigorous quality control. However, the hardware is only half the story. The true value for the customer lies in professional technical service. By ensuring that sales personnel are trained engineers, a laser and flame composite cutting machine supplier can offer solutions based on actual production realities rather than just specifications.
To support a global customer base spanning over 80 countries, the establishment of overseas service centers—such as those in South Korea and Turkey—is essential. These centers provide localized training, rapid spare parts delivery, and on-site installation, ensuring that the more than 10,000 systems currently in operation worldwide continue to perform with maximum uptime. This long-term commitment to "value beyond the machine" creates a partnership of trust, where the manufacturer’s growth is directly tied to the client’s success.
Conclusion
As heavy industry continues to evolve, the integration of smart, hybrid technologies will be the hallmark of successful enterprises. The laser and flame composite cutting machine represents the perfect marriage of precision and power, offering a versatile, cost-effective, and highly efficient solution for the modern workshop. By breaking the thickness barrier, this technology empowers manufacturers to take on more diverse projects, reduce operational risks, and achieve a level of productivity that was previously unattainable. For those looking to lead in the global market, the path forward is clear: embracing the hybrid revolution.
